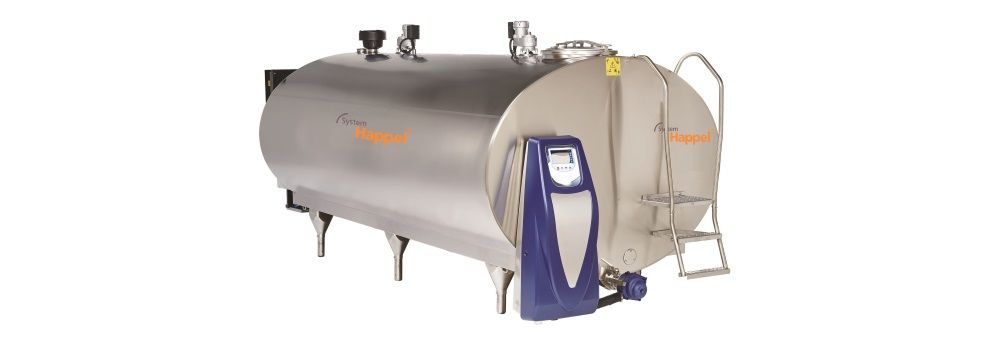

Pro-COOL° 2020
Choose the optimal system for your farm, depending on your milk production and your collection intervals, from a total of 25 designs with capacities between 10,000 and 40,000 litres.
The high cooling rate guarantees optimal preservation of the milk in observance of the strictest requirements.
Pro-COOL° 2020
The exclusive automatic cleaning system ensures perfect hygiene.
Cooling equipment
- Hermetic type cooling units with power adapted and low electrical consumption
- Regulation by cooling thermostatic expansion valve
Options
- Digital dipstick (from 1100l)
- Exact calibration accuracy 0.5%
- "Pump-Down" solenoid valve
- Thermal relay for compressor protection
- Saftey cooling switch and heat recovery system
- Flushing tap
- Separation of wastewater from cleaning
- Third pump for disinfectants
- Outlet valve position detection (open/close)
- Various milk outlet valve threads
- Non-return valve for bottom filling
- 5-metre supply cable
- Elliptical enclosed type with self-supporting structure
- CFC free insulation
- Austenitic stainless steel walls and adjustable legs
- Full flow evaporator
- Two openings for filling and ventilation
- Outlet valve
- Automatic build-in washing system
Agitation and homogenization
- Agitator with low-speed gear motor (25 rpm.)
- Programable automatic agitation
- Homogenization of milk fat

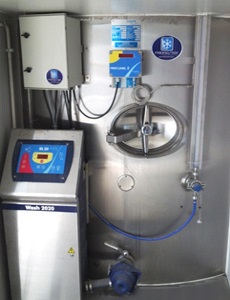

Electrical Equipment
- Electronical control unit
- Electrical box fixed on cooling unit support
- Standard main supply 400 V / 3P+N/50Hz
Easy transportation

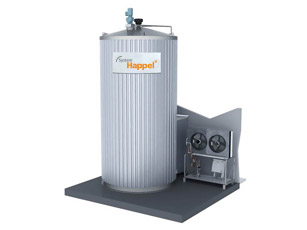

Thanks to the modular design, the cooling unit can be installed separately at any location. Milking robots can effortlessly be connected to the Happel system.

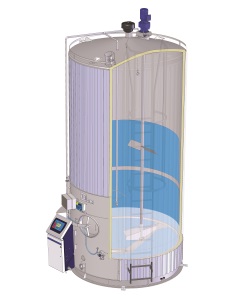

The new System Happel silo cooling tanks from SERAP

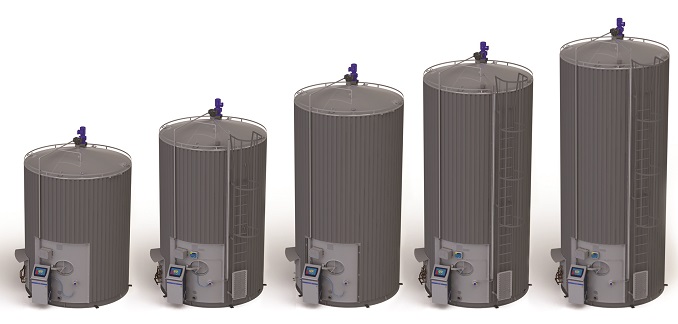

11 models from 10,000 liters to 40,000 liters
The new FIRST. SV 2.0 series is also perfectly designed to connect to the System Happel AktivPuls milking robot.
